Dismantling and Relocating a Climbing Gym: The Labeling System That Matters
Why Documentation Matters in Climbing Wall Relocation
Relocating a climbing gym is not like moving typical gym equipment. Climbing walls—especially those with built-in features like balconies, platforms, and integrated architectural elements—are semi-permanent structures held together by carefully orchestrated framing, panels, and mounting systems. When you dismantle one, you’re essentially taking apart a building. Without proper documentation, reassembly becomes guesswork.
The difference between a successful relocation and a project that stalls for weeks comes down to one thing: understanding the assembly order before you take the first panel down.
The Labeling System
The foundation of any gym relocation is aggressive, systematic labeling. This should begin before demolition starts, not after.
Marking Hardware and Panels
Label every component with painter’s tape and a permanent marker. Include the frame location, panel number, and assembly sequence. For example: “Frame-A-Panel-3-North.” Small hardware—bolts, t-nuts, brackets—goes into labeled plastic bags grouped by section. A label on the bag “Frame-A-Hardware” keeps everything together.
Photographic Documentation
Take photographs at each major disassembly stage. Capture the wall from multiple angles, especially focusing on how panels connect to the frame, how railings attach, and where load-bearing points are. These images become your assembly manual later. Without them, panel orientation and mounting bracket placement becomes a 50-50 guess.
Inventory and Blueprints
Maintain a written inventory of each frame section, panel count, and special hardware (like railing brackets or platform supports). If original blueprints exist, digitize them or create a rough sketch noting window cutouts, heating unit locations, and any custom framing that was built around existing building features. This is crucial if the new space has different dimensions or obstacles.
Understanding Modular Wall Framing Before You Dismantle
Climbing walls rely on a continuous load path from ceiling to floor. The framing provides this structural integrity; the panels distribute the load. This matters because it tells you the order you must dismantle: always work top-down, removing panels first, then lateral supports, then main frame beams last.
What the Frame Does
The primary frame beams carry all the weight. Typically, 2×4 or 2×6 lumber is secured to ceiling joists and floor anchors with lag screws or wedge anchors. Panels attach perpendicular to the frame with bolts through t-nuts on the plywood. Railings, balconies, and special features are bolted to the frame as well.
Panel Assembly Conventions
Standard climbing wall plywood panels are 5/8 inch thick, cut to fit the frame with slight gaps between panels to accommodate wood expansion from humidity changes. T-nuts are installed on the rear face before panels are mounted—inserting t-nuts after mounting is nearly impossible on vertical installations. This detail is easy to forget if you’re not taking careful notes during dismantling.
Squaring and Alignment
When frames are built, they’re squared by measuring diagonals from opposite corners; both distances must be equal. When you reassemble, you’ll need to verify the same thing. If you don’t note the original diagonal measurements, the frame may go up out of square, causing panels to misalign and bolts to sit at odd angles.
Dismantling Strategy
The order matters. Start from the top and work down.

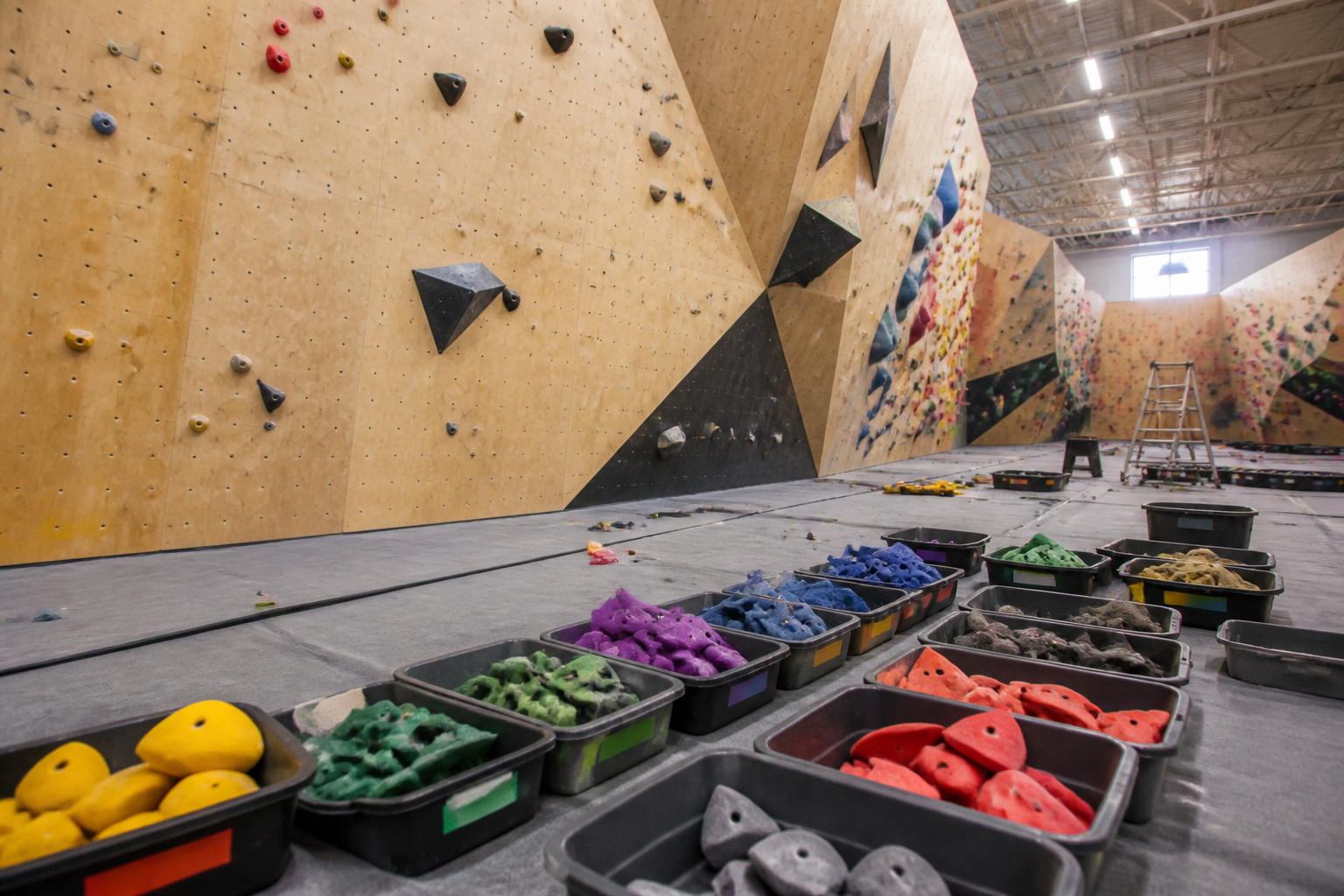

- Remove any non-structural elements (holds, volumes, padding) first.
- Remove panels, keeping them grouped by frame section and noting which face is up.
- Remove railings, platforms, and any bolted-on features.
- Remove lateral bracing and cross-members.
- Finally, remove main frame beams.
Photograph the frame with all panels removed—this shows you the framing skeleton. Mark each main beam with its location (Front-Left-Beam, Rear-Right-Beam) before it comes down.
Moving and Storing Components
Panels should be transported flat and stacked horizontally with cardboard or plywood spacers between them to prevent warping. Frame beams can go vertical but should be bundled and supported so they don’t bow under their own weight. Hardware travels in sealed bags grouped by frame section.
At the new location, before you start reassembling, lay out all panels and hardware by section on the floor. Verify every bolt, bracket, and piece is accounted for. This is when mistakes in labeling become obvious, and it’s much cheaper to discover them before you’ve mounted half the frame.
Reassembly Checklist
Reconstruct the frame first, using your photographic notes to get bolts, brackets, and loads paths correct. Verify the frame is square by measuring diagonals. Install t-nuts on panel backs before mounting panels. Mount panels carefully, using your photo reference to get orientation right. Then attach railings, platforms, and other bolted features last.
If anything fits wrong—a panel that seems to sit at an angle, a bracket that doesn’t align—stop and review your photos. Small misalignments at the framing stage cascade into major problems once panels are installed.
The New Location Matters
If the new gym has different window locations, structural columns, or ceiling height variations, some of your frame sections may not fit exactly as they were. Document these differences early. You may need to custom-cut panels or fabricate adapter brackets. This is why understanding the original frame design—which is why photography during dismantling is so critical—matters more than you’d expect.
