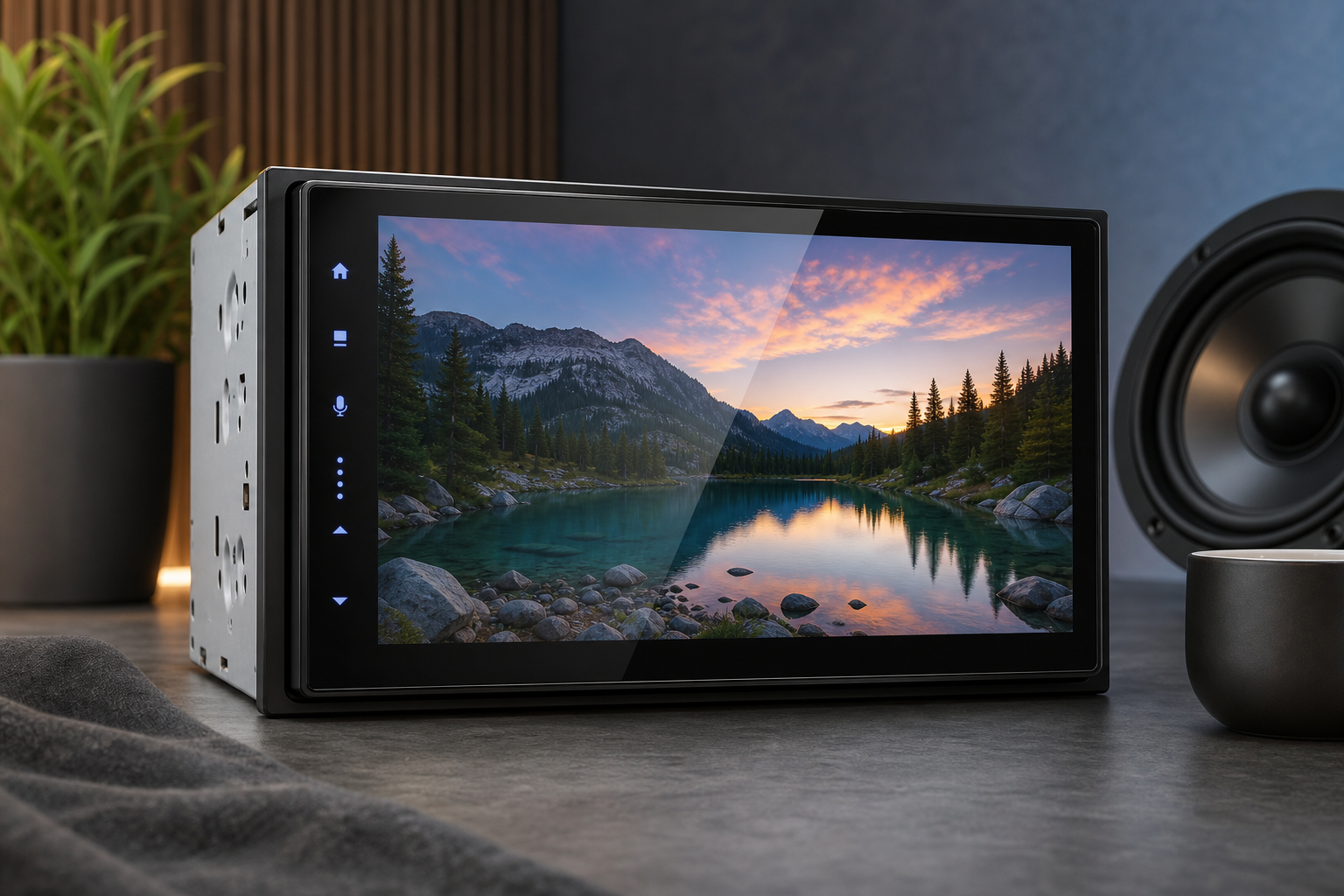

Kenwood DMX7722DABS Photo Support Issues and Solutions
Understanding the DMX7722DABS Photo Background Limitation
The Kenwood DMX7722DABS is a capable multimedia head unit that handles video playback smoothly—MPEG, MP4, and MKV files work as expected. But when you venture into the photo menu, the “unsupported media” message appears reliably, even with formats the manual explicitly lists as supported. This isn’t a random glitch unique to one unit; it’s a widespread issue across multiple user forums and appears to be a firmware or hardware implementation problem rather than user error.
What the Manual Says (and What Actually Works)
According to official Kenwood specifications, the DMX7722DABS supports three image formats for backgrounds and wallpapers:
- JPEG (.jpg or .jpeg)
- PNG (.png)
- 24-bit BMP (.bmp)
The recommended resolution is 800 x 400 pixels. However, multiple users across forums have confirmed that regardless of format or resolution, attempting to display photos via the USB menu consistently triggers the unsupported media error. This disconnect between the specification sheet and real-world functionality suggests the photo display feature is either incomplete in the current firmware or constrained by a hardware limitation.
Why Video Works But Photos Don’t
The asymmetry is telling. Video playback—MPEG, MP4, MKV—functions reliably for most users. The audio codec support (MP3, AAC, FLAC, WAV) is also solid. But the photo feature appears to be a different story. This pattern is consistent with an underdeveloped or buggy feature rather than a hardware-wide codec incompatibility. The circuitry and processing power to handle images is presumably present; something in the firmware or feature implementation isn’t working as documented.
Troubleshooting Steps That May Help
Before accepting the limitation, try these steps based on what some users have reported as at least partially helpful:
- Image size: Resize your images to exactly 800×400 pixels. Some users have found this made a difference on similar Kenwood models, though results are inconsistent.
- File extension: Use lowercase extensions (.jpg, .png, .bmp) rather than uppercase. Avoid double extensions or unusual naming.
- BMP format specifics: If trying BMP, ensure it’s explicitly 24-bit color, not 8-bit or 32-bit.
- USB device: Test with a different USB drive, preferably a basic one without special formatting or encryption. Try FAT32 file system if your drive allows it.
- Firmware check: Verify your firmware is current by checking the system information menu or visiting the Kenwood support site. No recent firmware updates specifically address this issue, but it’s worth confirming.
Is This a Known Issue?
Yes. Users across multiple forums (including AVForums, CarAudio.com, and Fixya) have reported identical symptoms dating back at least 2-3 years with no official resolution or firmware patch. The persistence of these reports across independent sources and over extended timespans suggests this is either a design decision (the feature was announced but never fully implemented) or a firmware bug that Kenwood has chosen not to address.
Practical Alternatives
If you need a custom background on your DMX7722DABS:
- Kenwood Portal App: Some users report limited success using the Kenwood Portal smartphone app (primarily iOS) to transfer wallpapers, though compatibility varies.
- Accept the default: Many users have simply switched to the unit’s built-in wallpaper options and used other methods (phone-based apps, separate displays) for custom imagery.
- Contact Kenwood support: If your unit is still under warranty, it’s worth raising with their support team, though responses are often scripted and unhelpful for known firmware issues.
The Bottom Line
The Kenwood DMX7722DABS is reliable for video and audio through USB, but the photo background feature appears to be non-functional despite the manual’s claims. Try the troubleshooting steps above—they’re low-effort and occasionally successful. But if you’ve already experimented with file formats, sizes, and USB devices without success, you’re likely hitting a fundamental limitation in the firmware that Kenwood hasn’t corrected. The good news: it’s a cosmetic feature, not a core audio or video function.
